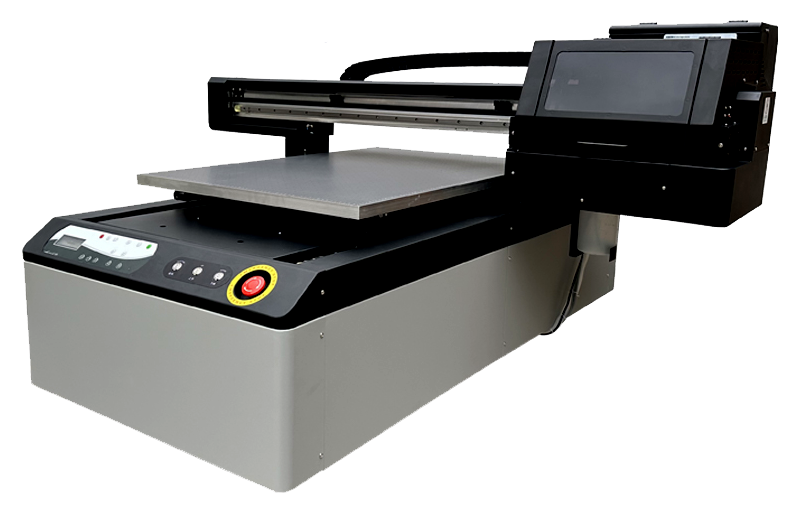

A 6090 UV printer is a type of flatbed inkjet printer that uses ultraviolet (UV) light to cure or dry ink as it prints. These printers are known for their ability to print durable, high-quality images on a wide variety of materials, including rigid, flexible, and cylindrical objects. The “6090” in the name generally refers to the 600mm by 900mm print bed size.
Key applications
- Promotional products: Personalize items such as phone cases, keychains, golf balls, pens, and tumblers.
- Signage: Create durable signs, plaques, wayfinding graphics, and ADA-compliant Braille signage on materials like acrylic, metal, and PVC.
- Decorative items: Print on glass, wood, ceramic tiles, and canvas for decorative and artistic purposes.
- Specialty items: Print on objects with irregular or curved surfaces, like bottles, with the use of a rotary attachment.
- Industrial products: Print on various materials for manufacturing and other industrial applications.
Key features
- Versatile media handling: 6090 UV printers are capable of printing on a diverse range of hard and flexible materials up to a certain thickness, typically around 18–20cm, including:
- Plastic (PVC, ABS)
- Acrylic
- Glass
- Ceramics
- Metal
- Leather
- Wood
- High-quality printing: Models often feature multiple print heads (typically Epson or Ricoh) and can achieve high resolutions, frequently up to 2880 dpi.

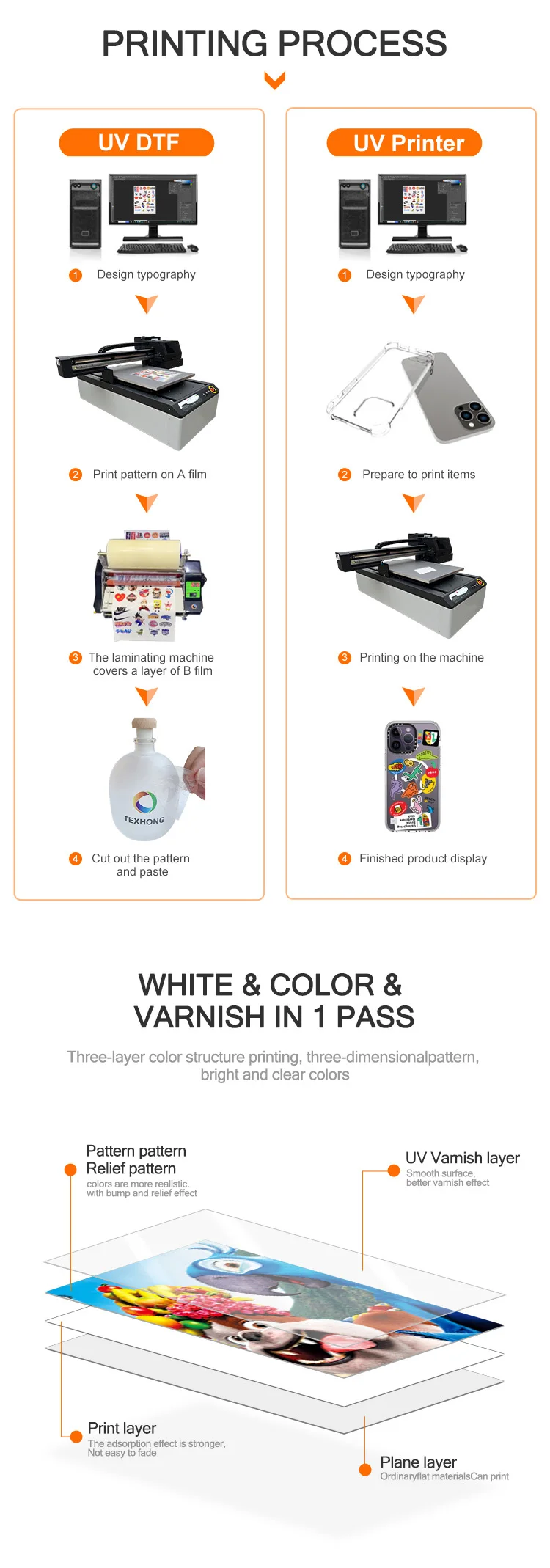

- Multi-color support: In addition to standard CMYK colors, many models include white and varnish ink channels. This allows for printing on dark or transparent materials and creating 3D embossed or glossy texture effects.
- Fast curing process: The UV curing technology dries ink instantly, allowing for faster production and increased efficiency.

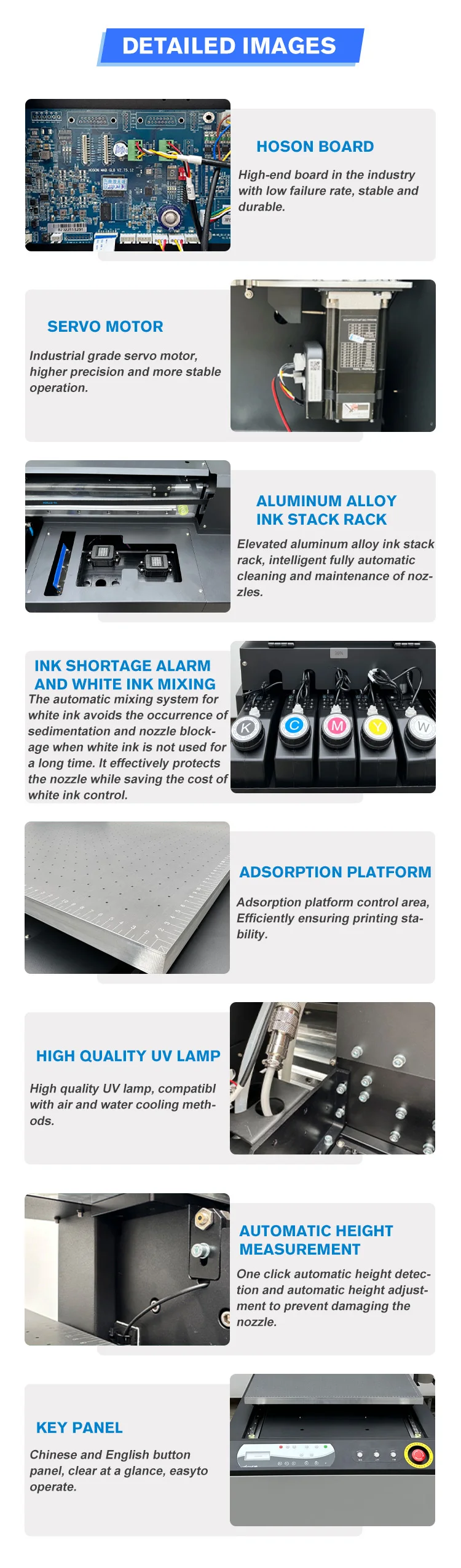

- Specialty features: Some models include advanced features for increased productivity and capability:
- Vacuum suction table: Holds lightweight or flexible materials flat for more precise printing.
- White ink circulation: Prevents white ink from settling and clogging the print heads.
- Automatic height detection: Prevents print head collisions by automatically measuring the material’s thickness.
- Rotary device: An optional attachment for printing on cylindrical objects.
Product comparison
Several brands offer 6090 UV printers with different specifications. Below is a table comparing some models from Alibaba and Made-in-China based on their product descriptions.
Specification
|
Product Name
|
6090 UV Flatbed Printer
|
|||
|
Print Head
|
I3200 U1 HD HEAD
|
|||
|
Print Head Quantity
|
1 pcs
|
|||
|
Printing Size
|
600*900mm
|
|||
|
Printing Accuracy
|
720/1080/1440/2160/3200 dpi
|
|||
|
Resolution & Speed
|
I3200-1pcs
6pass 8㎡/h
8pass 5㎡/h 12pass 3㎡/h |
|
||
|
Print Mode
|
KCMY
|
KCMY+W
|
||
|
Print Head Cleaning
|
Automatic
|
|||
|
Ink Type
|
UV ink
|
|||
|
Platform Height Adjustable
|
0-180mm
|
|||
|
Print Material
|
Acrylic, glass, stainless steel, mobile phone cases, ceramic tiles, KT boards, wooden boards, aluminum-plastic boards
|
|||
|
Ink Cartridge Type
|
Intelligent induction ink shortage alarm cartridge
|
|||
|
White lnk Stirring Function
|
Yes
|
|||
|
Rotary Shaft Device
|
Optional
|
|||
|
Platform Suction
|
Yes
|
|||
|
Print Interface
|
Gigabit Network
|
|||
|
Standard warranty cover
|
1 Years
|
|||
|
Working Environment
|
Temperature 20-30’C
|
|||
|
Software
|
Riprint / MainTop / Photo Print
|
|||
|
Operating System
|
Win7 / Win10 / Win11
|
|||
|
Rated Power
|
300W
|
|||
|

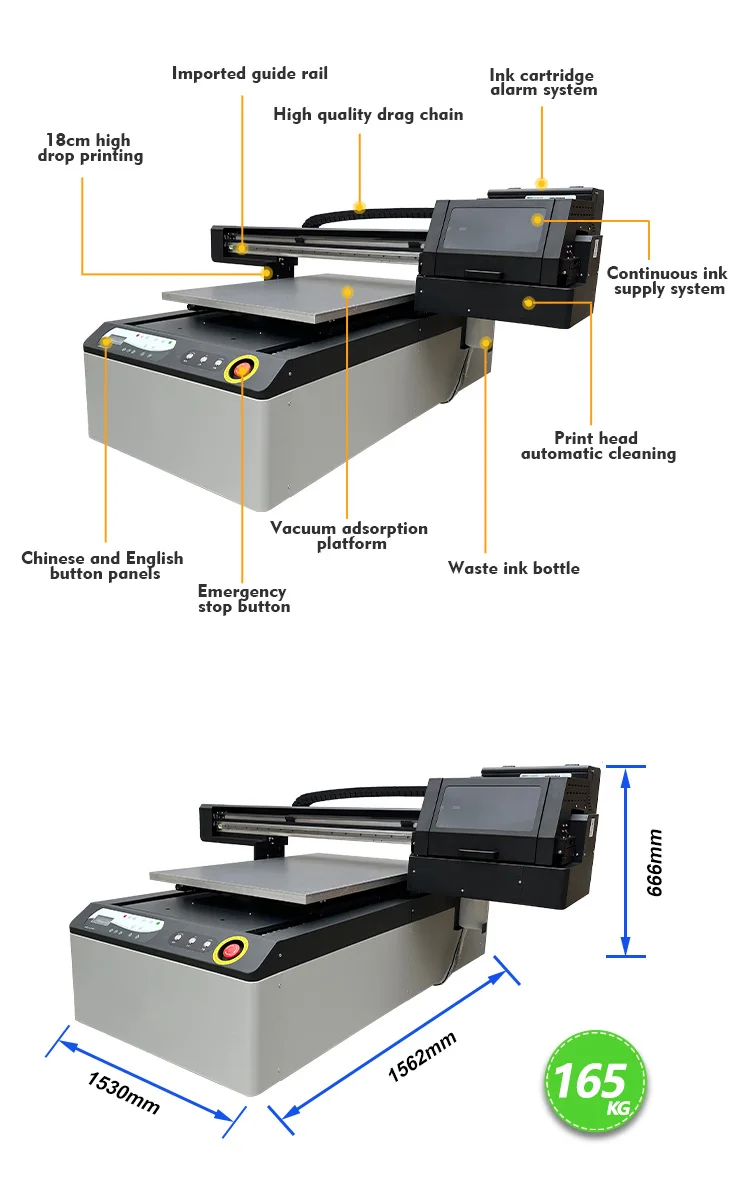

Machine size/weight
|
L1562*W1530*H666mm/165kg
|
|||
|

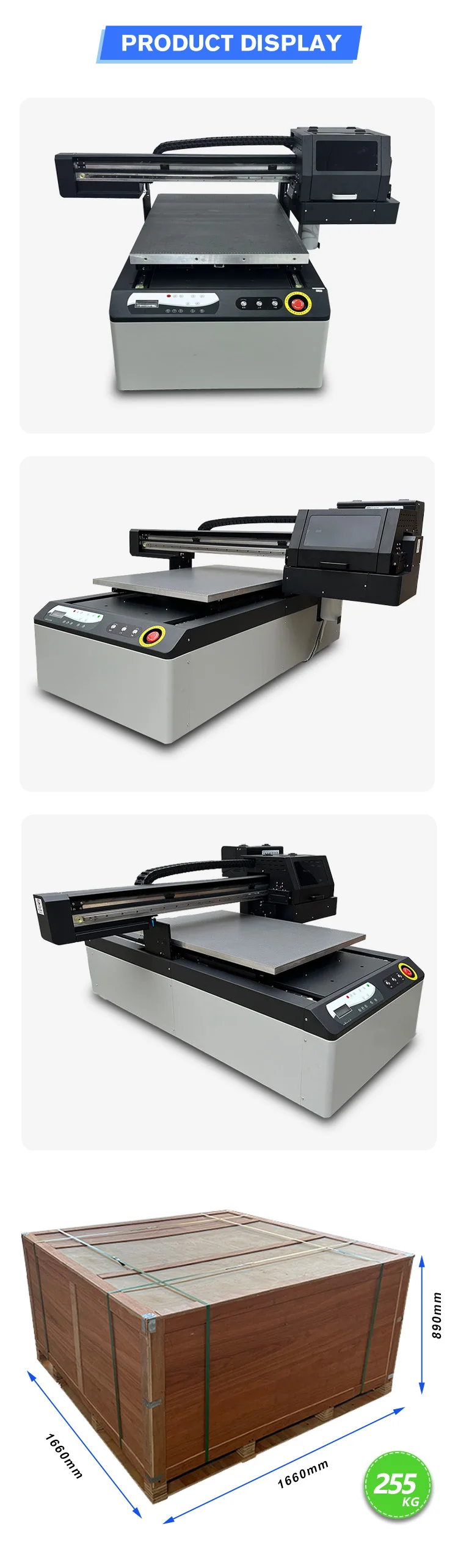

Package size/weight
|
L1660*W1660*H890mm/255kg
|
|||
